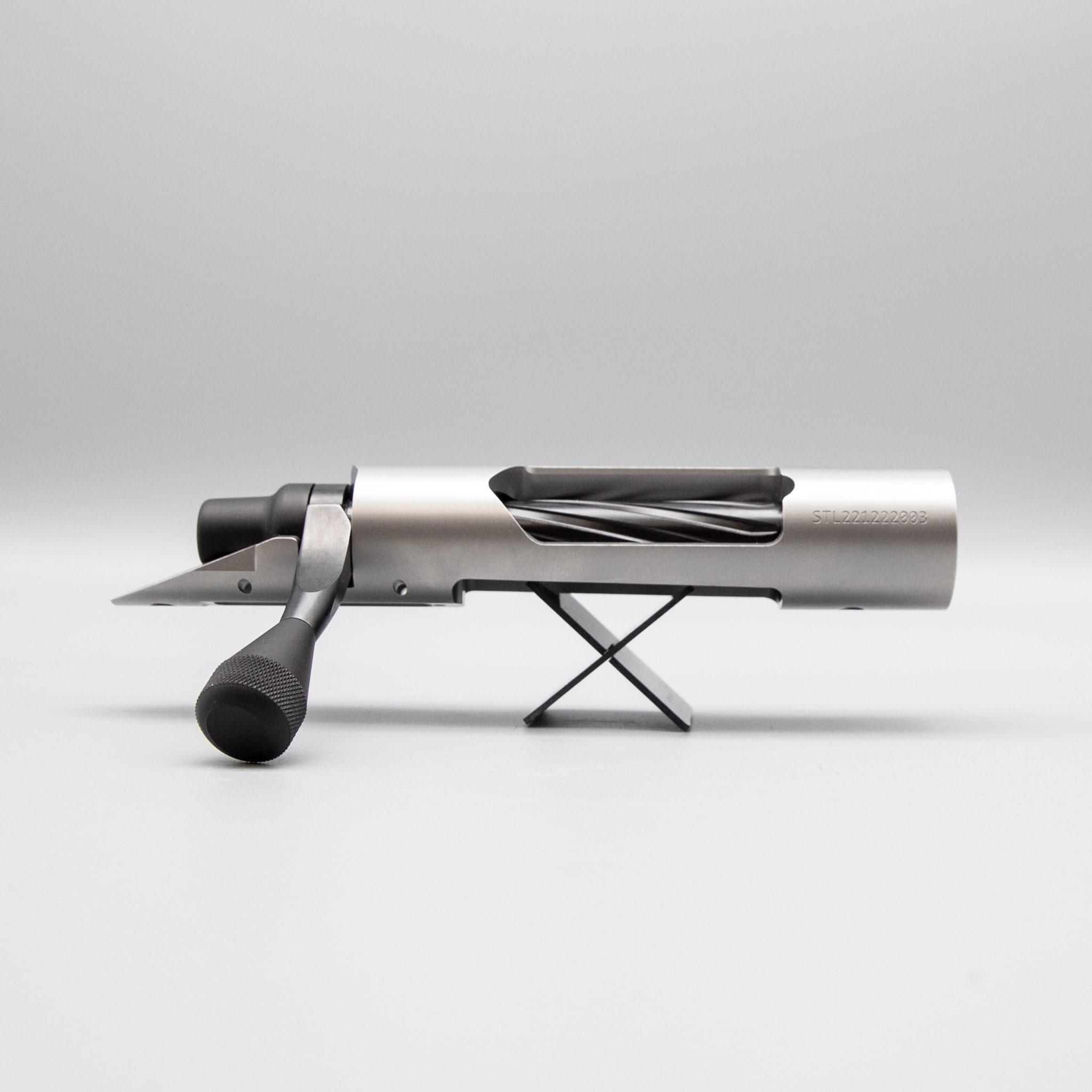

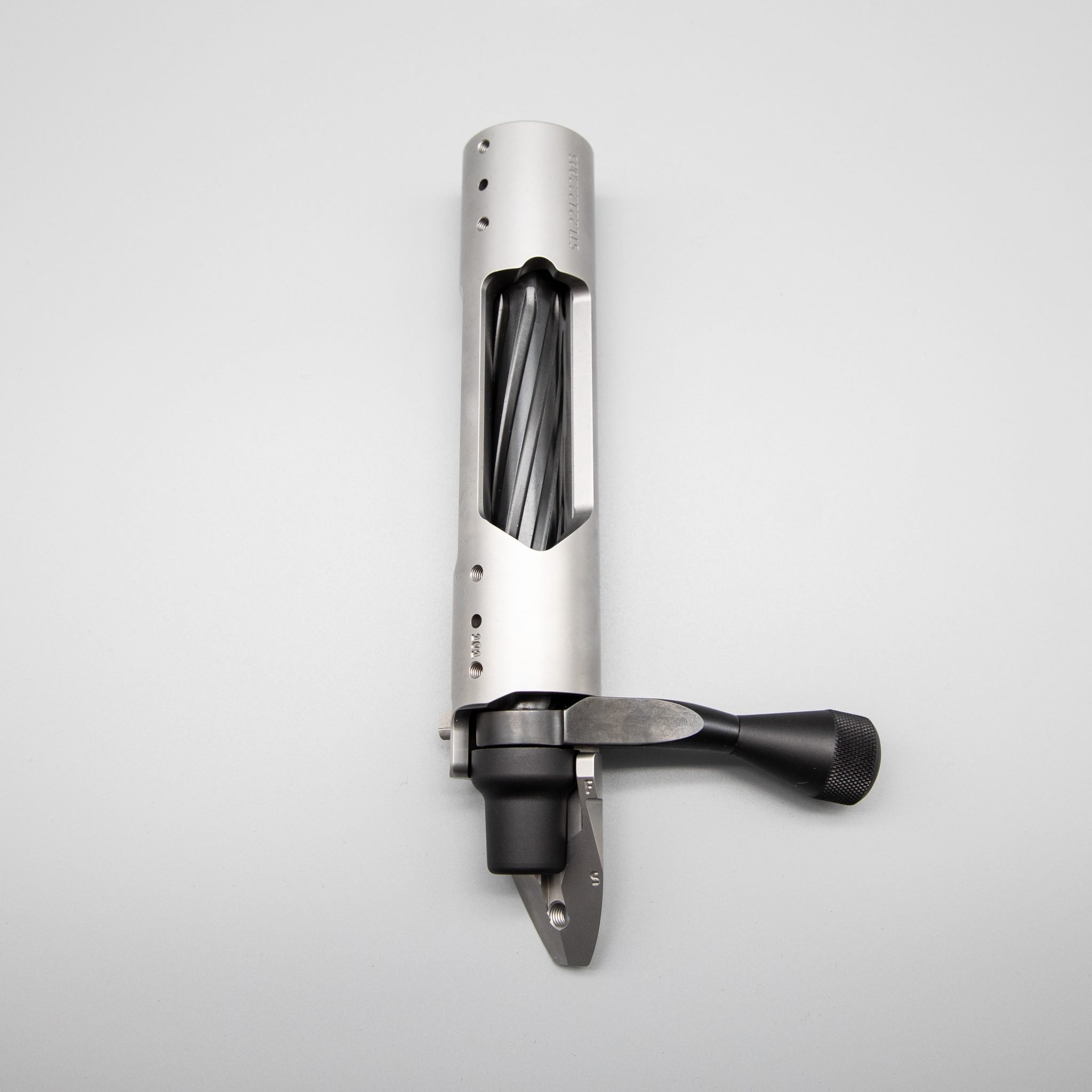

TAC 30

From tactical shooting to long-range hunting, the TAC series is a great starting point for a custom action.

TAC actions are bead-blasted stainless steel action and will fit most stocks with a Remington 700 action inlet.

TAC actions have a factory length mag cut allowing for a factory BDL bottom metal and are available with light, standard, and magnum bolt faces.

  • List Price: $
  • $

TAC 30 Specs

Receiver Material Receiver Length Receiver Diameter Headspace Bolt Diameter Bolt Design Bolt Stop Bolt Throw Bolt Material Bolt Coating Firing Pin Extractor/Ejector Recoil Lug
416 Stainless 7.850" 1.35" (Remington 700) 0.700" +/- 0.002" 0.0007" One piece fluted on top and sides, with a slightly swept bolt handle. Large knob with 5/16 x 24 thread. On side of receiver opposite bolt handle above the stock line. 90 degrees 4140 Black Nitride Fluted Stainless Steel, 0.067" diameter tip Sako Extractor/td> 416R Stainless parallel sided or tapered. .187" (Rem 700 standard) or .300" produced in house and surface ground to .0002" tolerance
product image

Action Weights

Body, Bolt, Rail, Recoil Lug, and Trigger Pins

28.4 oz

Action Body

15.1 oz

Bolt Only

10.5 oz

For the next generations

Have a question? We'd love to speak with you.

Contact us
category spotlight image
category spotlight image
category spotlight image
category spotlight image

Tenon Threads

1.0625-16 UN-3B

Made with a single-point boring bar and indexed to the top center of the action.

This allows any barrel ever fitted to a Stiller action to be screwed onto any other Stiller action without need for re-headspacing or re-indexing.
